Next Generation Automated Retinal Imaging
Simplicity, speed, and scale with complete automation and a compact design that fits everywhere.
Unmatched Speed and Consistency

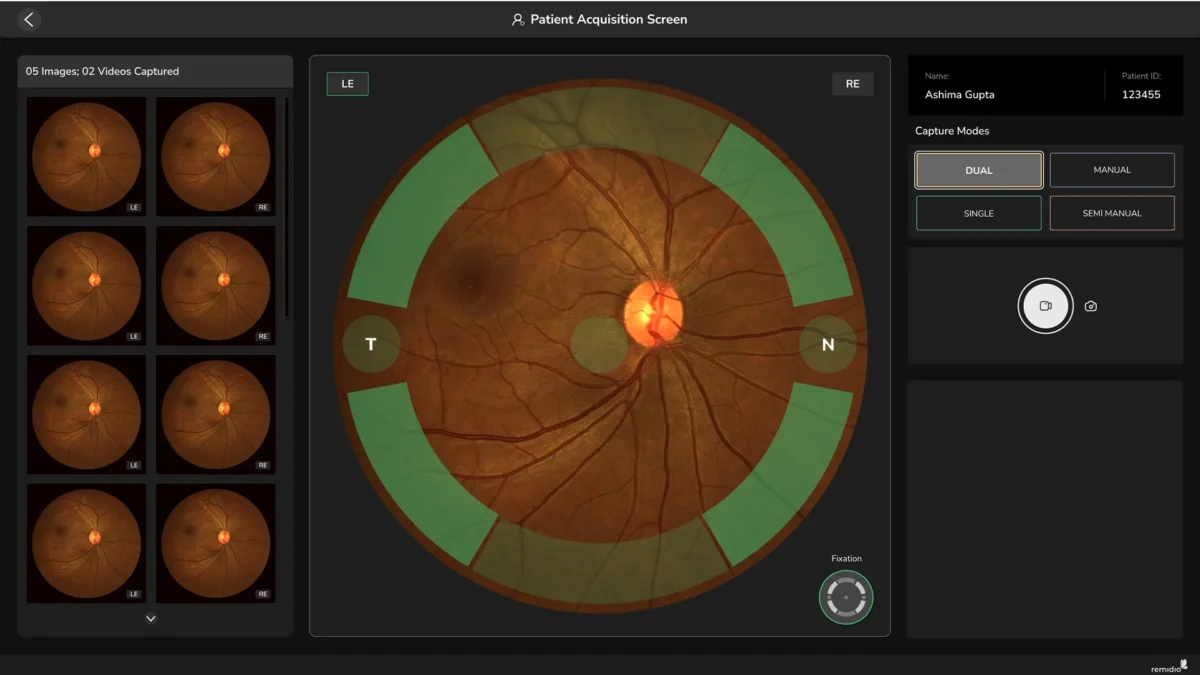

Laser-based autofocusing with AI pupil tracking ensures that any operator can capture sharp and properly centered images for both eyes in just 30 seconds.
Superior Non-mydriatic Imaging, Even in Challenging Conditions
Advanced optical pathway enables clear visualization without dilation even in eyes with NS3-grade cataract and pupils as small as 0.1” (2.6 mm).
Accurate Visualization of the Macula, Optic Disc, and Peripheral Vasculature

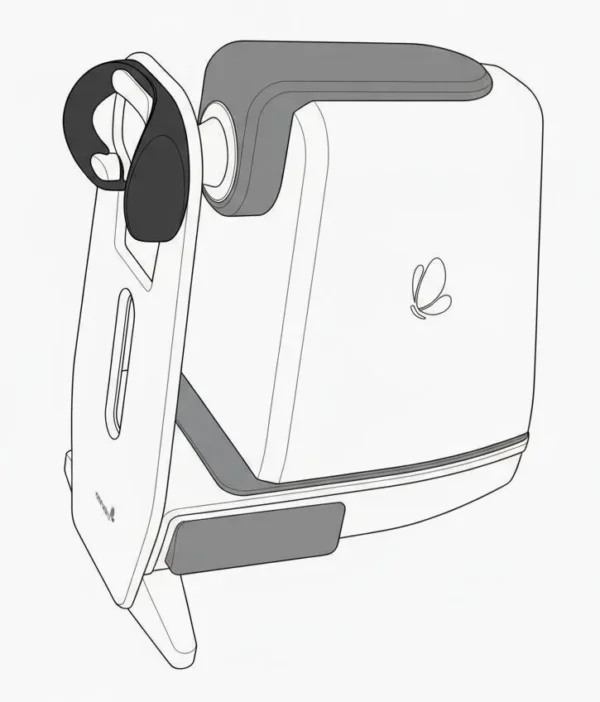

Uncompromising Accuracy in a Compact Design that Fits Any Setting
Packing powerful technology in a small footrpint, InstaZ provides a 45° wide-agnle view with true-color and red-free images, for a comprehensive retinal assessment in the clinic or on the go.
Cloud-Connected
and AI-Ready
Images are instantly uploaded to a secure cloud platform for storage and grading — enabling remote consultations and scalable community screening programs.
Retinal Imaging with Simplicity, Speed, and Scale
Designed to overcome the limitations of conventional retinal imaging systems, InstaZ sets a new standard for speed and simplicity with uncompromising precision.
Remove the Barriers to Retinal Screening at Scale
Designed for high-volume retinal screening in clinical and community settings, InstaZ is a highly affordable solution that combines unmatched speed with uncompromised precision for scalable operations in any environment.
Primary Care Providers
Sight-saving screening that elevates care, not your workload
Rural & Mission Providers
Everything you need for vision screening on-the-go
Eye Care Specialists
Fast and accurate imaging, at the office and beyond
Specifications
Non-mydriatic
45°
0.1” (2.6 mm)
-15D ~ +15D
Automatic (auto-pupil targeting, auto-focus, auto-capture) or manual
X-Y-Z Direction
7 Internal fixation
Infrared for focusing + flash
LED for Image Capturing
Center: ≥60 lp/mm, Mid: ≥40 lp/mm, Edge: ≥25 lp/mm
True color retinal imaging, red-free retinal imaging
L16.54” × W9.84” × H18.90” (420 mm × 250 mm × 480 mm)
30.9 lb. (14 kg)
AC 100-240V, 50/60Hz, 120W
Laptop Interface
Integrated 15.6” FHD (1920×1080)
SSD (512 GB)
13th Gen Intel® Core™ i5-13420H (8 Cores, 12 Threads, 2.1 GHz Base)
Windows 11 Home (64-bit)
16 GB DDR4
USB 3.2, USB-C, HDMI, Audio Jack, Wi-Fi, Bluetooth
